  • 2 Ton Inverter AC, 3 Star Rating
  • Copper Condenser
  • 1 Year Comprehensive Warranty, 10 Years Compressor Warranty
  • For Rooms up to 260 sqft
  • Power Consumption: 2090 Watts
  • Refrigerant: R32
  • Stabilizer Free Operation, Passive Air Purification

Specifications

  • Air Conditioner Category

    • Air Conditioner Type

    • Split

    • Air Conditioner Capacity

    • 2 Ton

    • Approximate Coverage Area(Sq.Ft)

    • 260 Sq.Ft.

    • Approximate Coverage Area(Sq.M)

    • 24.15 Sq.M.

    • Installation Type

    • Wall Mount

  • Manufacturer Details

    • Model Series

    • CS/CU-KU24ZKYF1

    • Model Number

    • CS/CU-KU24ZKYF1

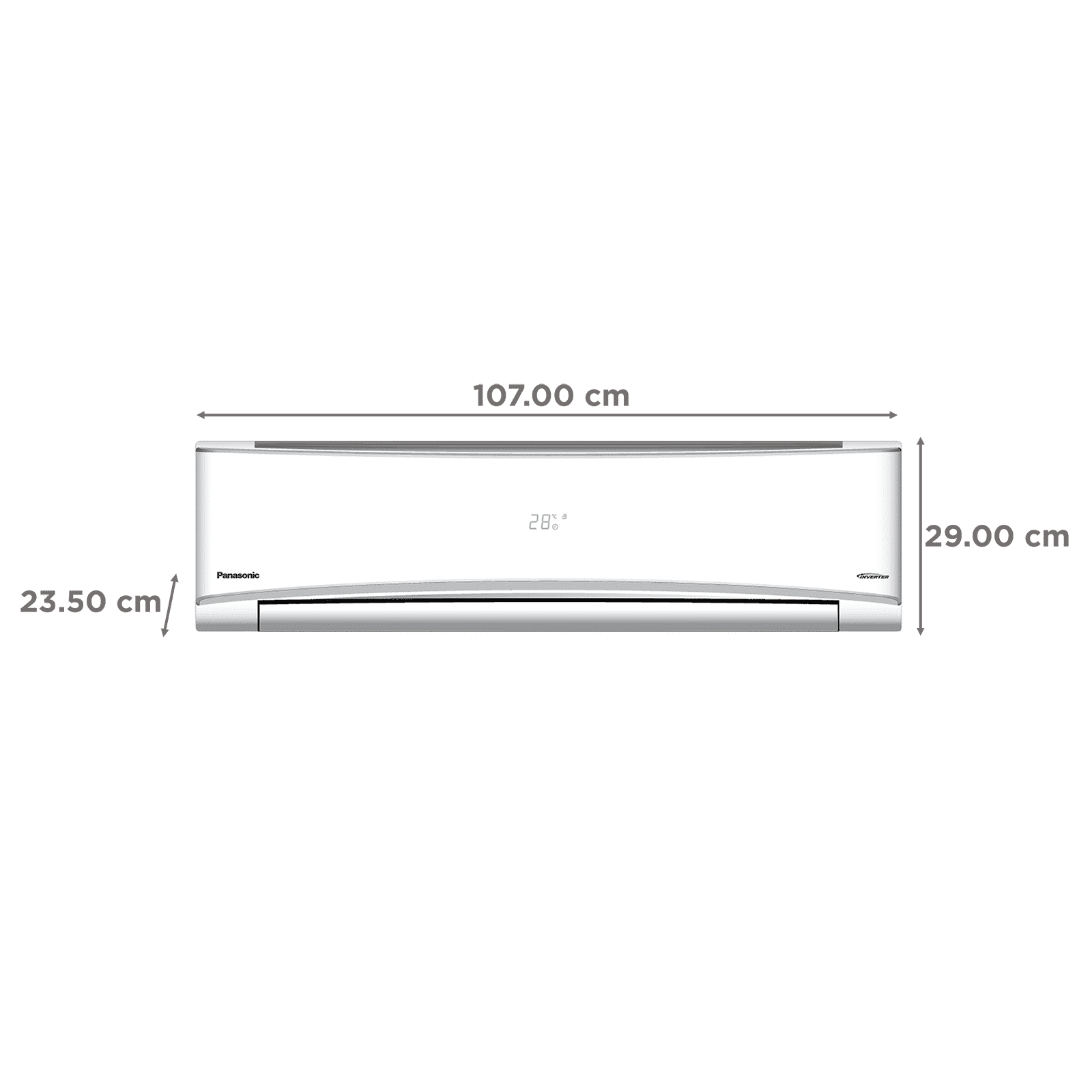

  • Product Dimensions (Open)

    • Dimensions In CM (WxDxH)

    • 107. x 23.4 x 29.0

    • Weight

    • 12 Kg

    • Dimensions In Inches (WxDxH)

    • 42.13 x 9.25 x 11.42

  • Air Conditioner Features

    • Convertible Mode

    • Yes

    • Air Flow Volume

    • 653 CFM

    • Humidity Control

    • Yes

    • Types of Sensors

    • Temperature Sensors

    • Inverter Technology

    • Yes

    • Stabilizer Free Operation

    • Yes

    • Cooling Capacity

    • 21496 (9673 - 23645) BTU Per Hours | 6300 (2835 - 6930) Watts

    • Ambient Temperature (Cooling/Heating) In Degree Celsius

    • 16 - 52 Degree Celsius

    • Running Current (Cooling/Heating)InAmps

    • 9.6 Amps

    • Cooling Power Input

    • 2090 (648 - 2822) Watts

    • Additional Air Conditioner Features

    • Stabilizer Free Operation Voltage Range: 145 - 285V | Units Consumed Per 1600 Hours: 1234.16

  • Air Conditioner Functions

    • Compressor Type

    • Twin Rotary Compressor

    • Refrigerant Type

    • R-32

    • Temperature Settings

    • 24

    • Noise Level (Indoor Unit)

    • 40 - 47 dB

    • Noise Level (Outdoor Unit)

    • 56 dB

    • Air Purification Function

    • Yes

    • Air Purification Type

    • Passive Purification

    • Additional Air Conditioner Functions

    • converti7

  • Air Conditioner Physical Attributes

    • Connecting Pipe Type

    • Copper Connecting Pipe

    • Connecting Pipe Length

    • 3 Meters

    • Condenser Coil Type

    • Copper Condenser Coil

    • Evaporator Coil Type

    • Copper Evaporator Coil

    • Drainage Hose Pipe

    • Yes

    • Louvers Swing Type

    • Up/Down

    • Other Body Features

    • Eco Tough ODU Casing

  • Air Conditioner Screen Specifications

    • Type

    • Hidden

  • Remote Control Details

    • Remote Control Type

    • IR

    • Screen Type

    • LCD

    • Remote Battery Type

    • AAA

    • Remote Additional Features

    • Glow Buttons

  • Energy Standards

    • Energy Efficiency (Star Rating)

    • 3 Star

      • Energy Saving Functions

      • Yes

    • Air Conditioner Plug Details

      • Power

      • 2090 Watts

      • Voltage Rating

      • 220 - 240V

      • Frequency

      • 50 Hz

      • Phase

      • Single Phase

      • Cord Length

      • 3.6 Meters

      • Maximum Operating Temperature

      • 52 Degree Celsius

    • Materials & Durability

      • Body Material

      • Plastic

    • Aesthetics

      • Color

      • White

      • Color Family

      • WHITE

    • In The Box

        • Documents

        • User-Manual | Warranty Card

        • Main product

        • 1 x Indoor Unit & Outdoor Unit

        • Accessories

        • InstallationKit | RemoteControlBattery | RemoteControl

            • Generic Name

            • Air Conditioner

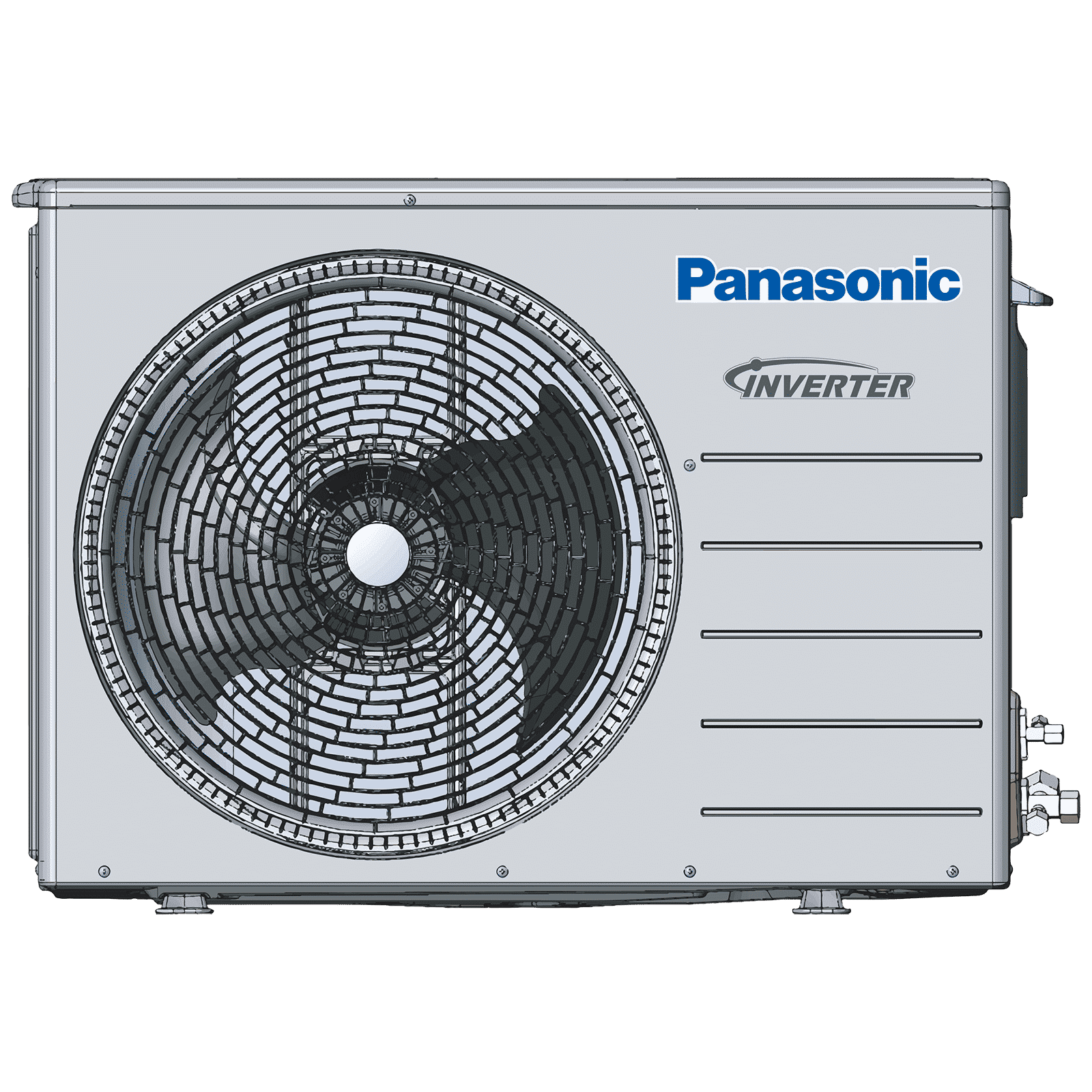

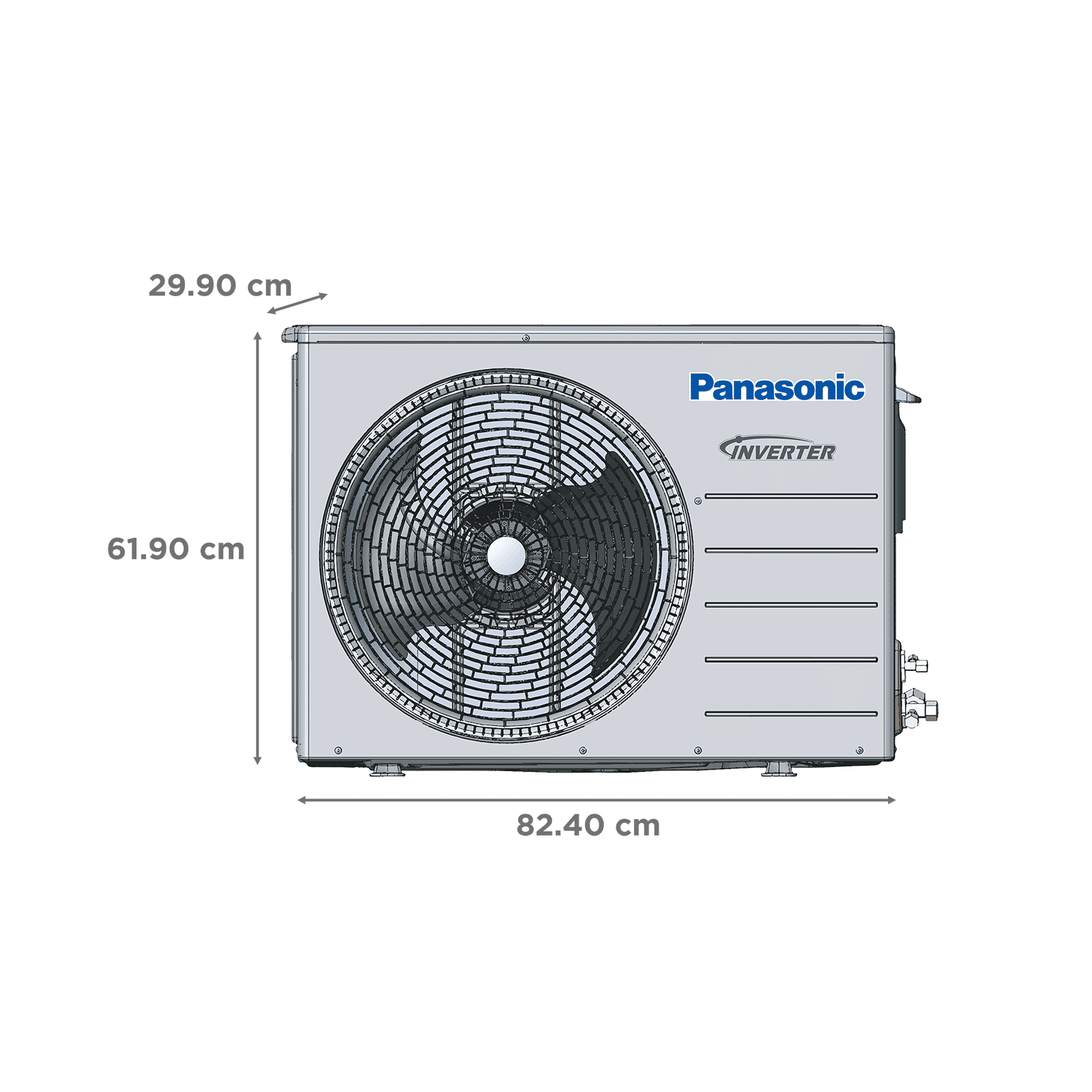

          • Product Dimensions Outdoor Unit

            • Dimensions in CM (W x D x H)

            • 82.40 x 29.90 x 61.90

            • Dimensions in Inches (W x D x H)

            • 32.44 x 11.77 x 24.37

            • Weight

            • 29.5 Kg

          • Packaged Dimensions

            • Dimensions in Inches (W x D x H)

            • 45.67 x 11.06 x 14.53

            • Weight

            • 14 Kg

            • Dimensions in CM (W x D x H)

            • 116.00 x 28.10 x 36.90

          • Product Packaged Dimensions Outdoor Unit

            • Dimensions in CM (W x D x H)

            • 97.00 x 41.60 x 70.00

            • Dimensions in Inches (W x D x H)

            • 38.19 x 16.38 x 27.56

            • Weight

            • 34.5 Kg

          • After Sales & Services

            • Warranty on Main Product

            • 12 Months

            • Additional Warranties

            • 1 Year Warranty on Condenser| 10 Years Warranty on Compressor

            • Warranty Type

            • Onsite

            • Installation & Demo

            • Croma will coordinate for Installation and Demo on Chargeable Basis

                • Certification

                  • ROHS Compliance

                  • Yes

                  • Energy Star Certification

                  • Yes

                • Company Contact Information

                  • Customer Support Number

                  • 18001081333

                  • Customer Support Email

                  • helpline@in.panasonic.com

                  • Manufacturer/Importer/Marketer Name & Address

                  • Manufacturer Name & Address: Panasonic India Pvt. Ltd. 12th Floor Ambience Tower Ambience Island NH-8 Gurgaon -122002 Haryana

                  • Country of Manufacture

                  • India

                  • Country of Brand Origin

                  • Japan

                • Croma Service Promise

                  • Customer Support Email

                  • customersupport@croma.com

                  • Registered Name and Address

                  • Infiniti Retail Ltd. - Unit No. 701 & 702, 7th Floor, Kaledonia, Sahar Road, Andheri (East); Mumbai - 400069. India

                  • Customer Support Number

                  • 1800 572 7662

                  • Customer Care Contact Person

                  • Grievance Officer

                View More

                Overview

                Optimal Cooling Capacity

                With an impressive airflow volume of up to 653CFM, the Panasonic CS/CU-KU24ZKYF1 2-ton Split Air Conditioner is perfectly suited for rooms up to 260Sq.Ft. Moreover, featuring a 7-in-1 convertible mode, this AC enables you to conveniently tailor the cooling capacity to your preferences, ensuring efficient and personalised cooling solutions.


                Two-way Air Swing

                With its two-way air swing feature, this air conditioner ensures optimal air dispersion and cooling throughout the room. The horizontal and vertical louvers work in tandem, directing cool air to every corner, creating a comfortable environment.


                Passive Air Purification System

                Utilising a consistent and energy-efficient approach, this AC enhances indoor air quality. The integrated filters mechanically capture and eliminate particles like dust and pollen from the air, contributing to an improved indoor environment.


                Sleep Mode

                Enhance your sleep quality with this air conditioner's sleep mode, which adapts cooling settings for a peaceful night.


                Twin Rotary Compressor

                As the 2-ton AC's twin rotary compressor ensures not only efficient cooling but also longevity.


                3-Star AC

                For a budget-conscious cooling solution, consider this air conditioner, for it has a 3-star rating and a power consumption of only 2090W.


                Copper Condenser Coil

                Integrated with a copper condenser coil, this air conditioner enhances heat exchange efficiency, resulting in an efficient and rapid cooling process.


                PM0.1 Filter

                Owing to its PM0.1 filter, this AC effectively purifies the air by capturing dust, allergens, and other airborne impurities, ensuring your home remains fresh and clean.


                Self-Clean

                With its self-clean feature, this air conditioner simplifies maintenance by automatically cleaning the unit.


                R32 Refrigerant

                Incorporating R32 refrigerant, this AC is designed to provide efficient and eco-friendly cooling for your space.


                Stabiliser-Free Operation

                You don’t have to worry about getting an external stabiliser to handle voltage fluctuations, thanks to this air conditioner’s stabiliser-free operation.


                Works with Various Inverters

                You won’t have to worry about power cuts as this AC stays functional as it is inverter-compatible.
