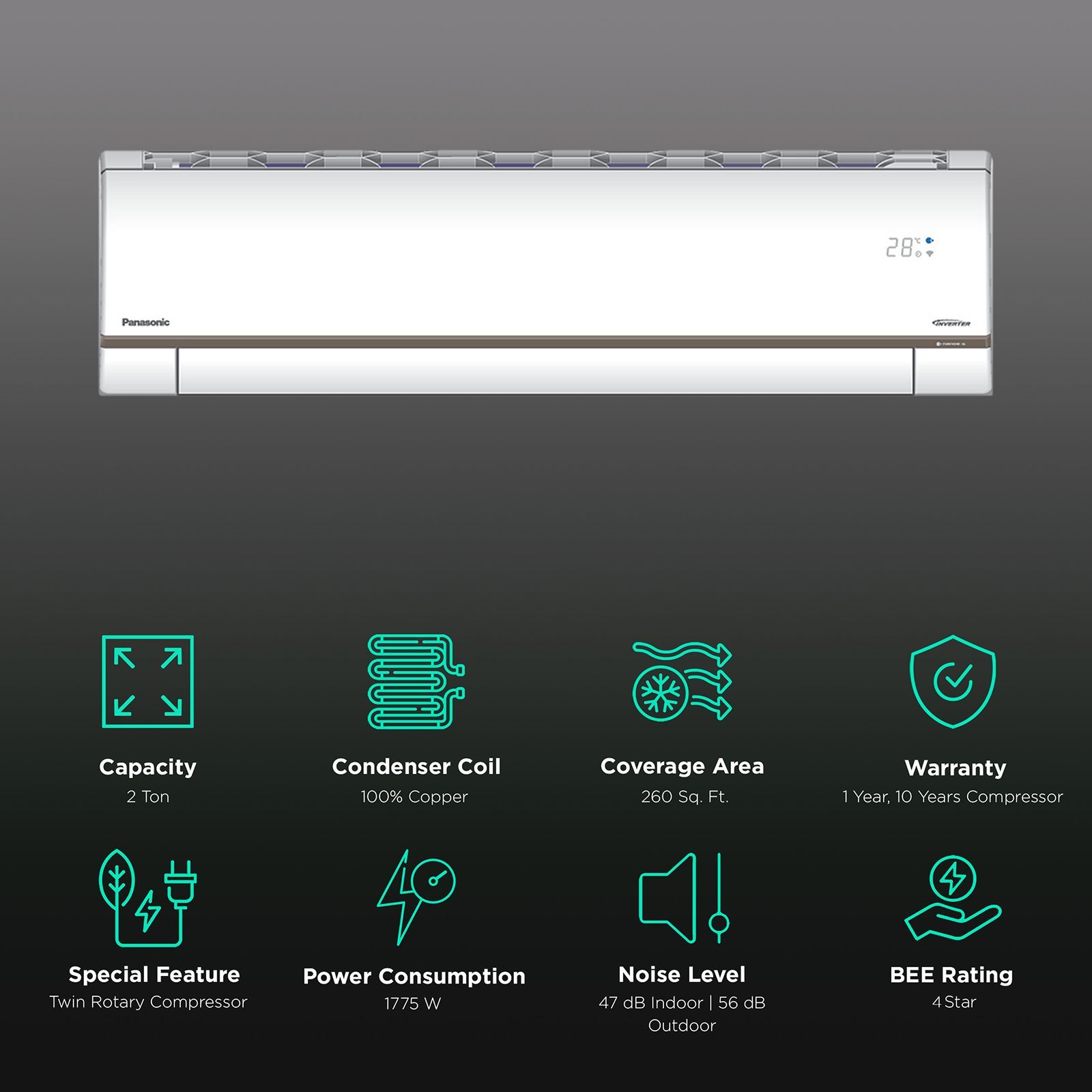

  • 2 Ton Inverter Split Smart AC, 4 Star Rating
  • Copper Condenser
  • 1 Year Comprehensive Warranty, 10 Years Compressor Warranty
  • For Rooms up to 260 sqft
  • Power Consumption: 1775 Watts
  • Refrigerant: R32
  • Shield Blu Plus, Active Air Purification

Specifications

  • Air Conditioner Category

    • Air Conditioner Type

    • Split

    • Air Conditioner Capacity

    • 2 Ton

    • Coverage Area

    • 260 Sq.Ft.

    • Approximate Coverage Area(Sq.M)

    • 24.15 Sq.M.

    • Installation Type

    • Wall Mount

  • Manufacturer Details

    • Model Series

    • CS/CU-WU24ZKYXF

    • Model Number

    • CS/CU-WU24ZKYXF

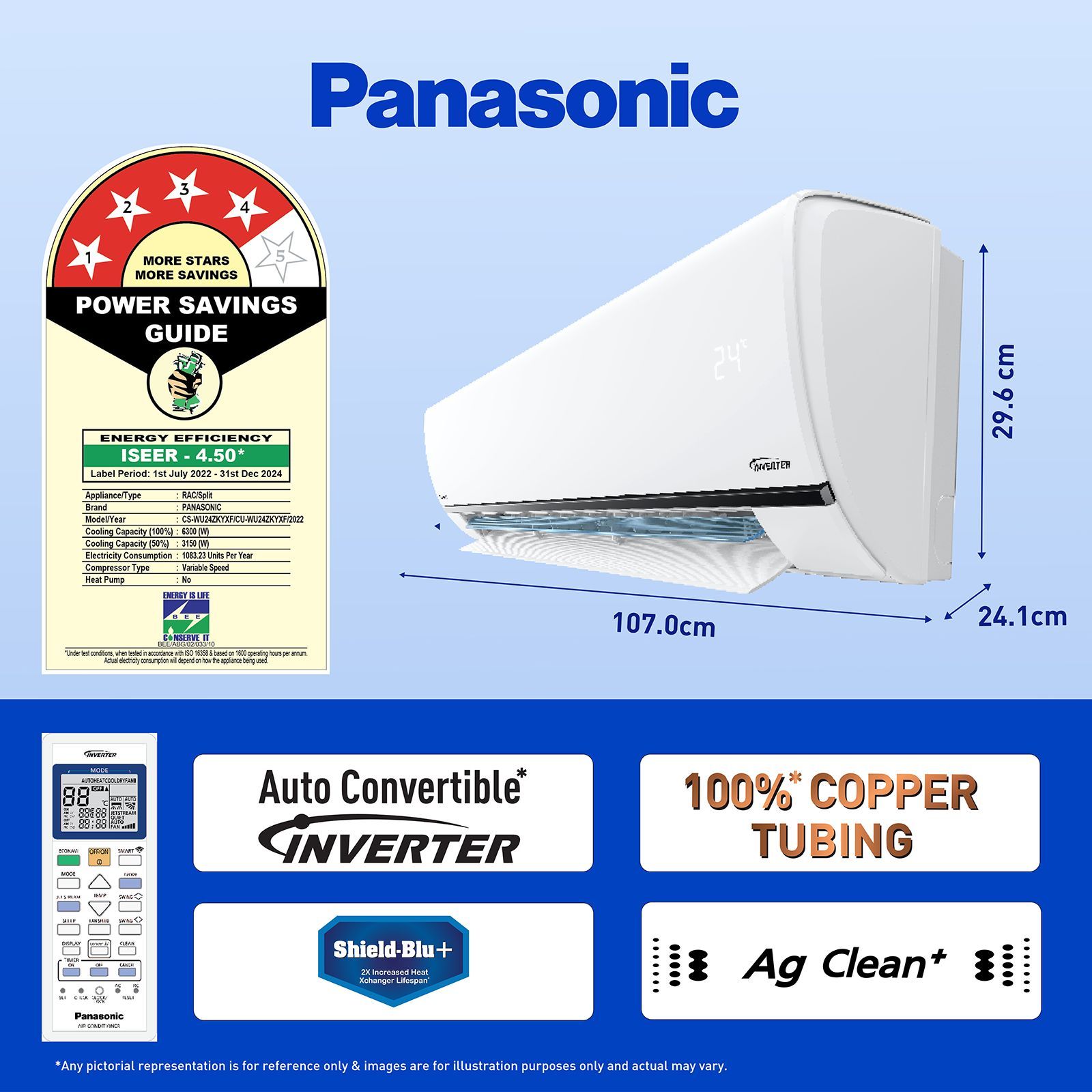

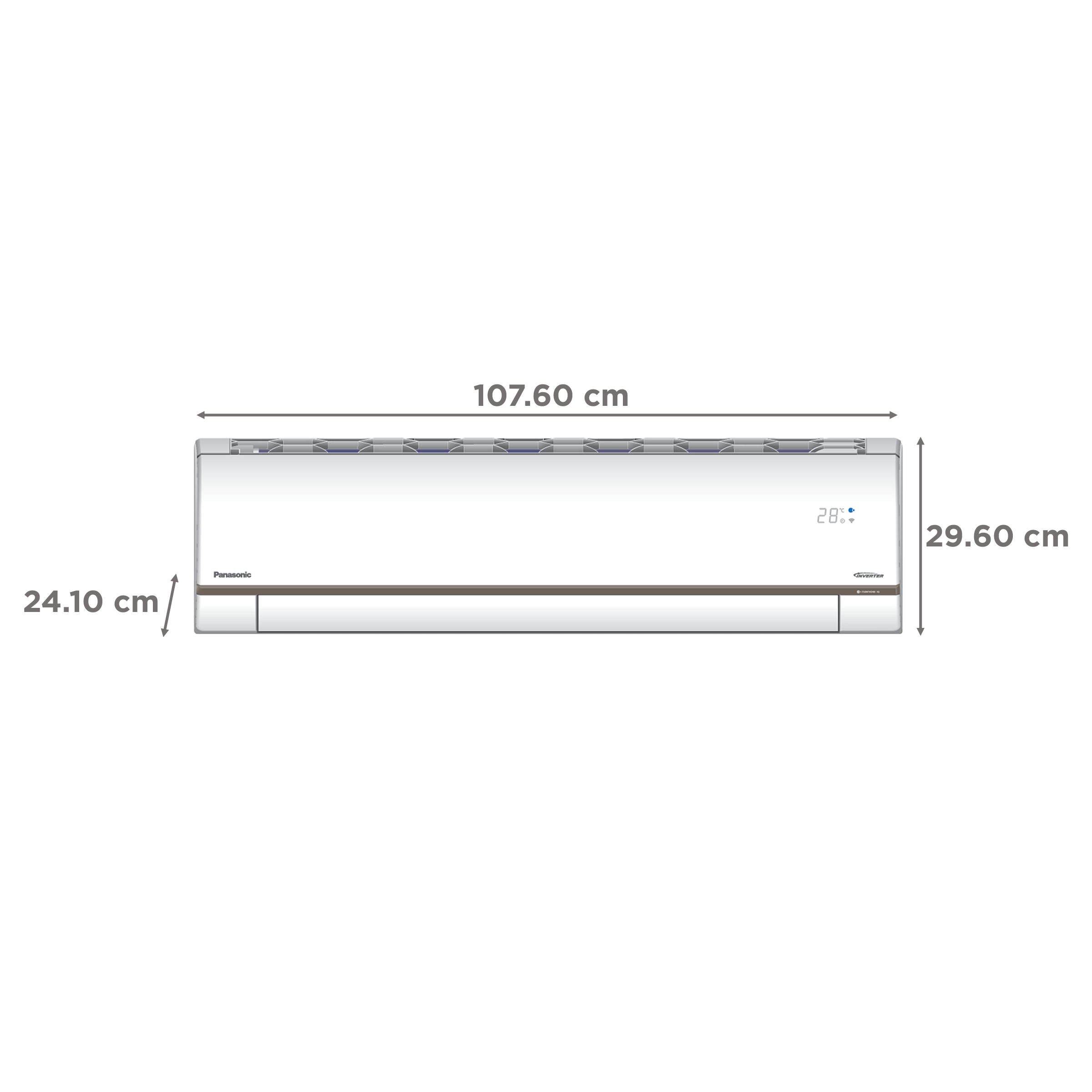

  • Product Dimensions (Open)

    • Dimensions In CM (WxDxH)

    • 107. x 24.0 x 29.5

    • Product Weight

    • 12 Kg

    • Dimensions In Inches (WxDxH)

    • 42.36 x 9.48 x 11.65

  • Air Conditioner Features

    • Convertible Mode

    • Yes

    • Air Flow Volume

    • 653 CFM

    • Humidity Control

    • Yes

    • Types of Sensors

    • Temperature Sensor | AQI (PM 2.5) Sensor

    • Inverter Technology

    • Yes

    • Stabilizer Free Operation

    • Yes

    • Cooling Capacity

    • 6300 Watts

    • Ambient Temperature (Cooling/Heating) In Degree Celsius

    • 16 - 52 Degree Celsius

    • Rated Current

    • 8.1 Amps

    • Cooling Power Input

    • 21496 Btu/h

    • Air Conditioner Features

    • Stabilizer Free Operation Voltage Range: 100 - 290V | Units Consumed Per 1600 Hours: 1083.23

  • Air Conditioner Functions

    • Compressor Type

    • Twin Rotary Compressor

    • Refrigerant Type

    • R-32

    • Noise Level (Indoor Unit)

    • 47 db

    • Noise Level (Outdoor Unit)

    • 56 db

    • Air Conditioner Filters

    • Ag Clean Plus Filter

    • Air Purification Function

    • Yes

    • Additional Air Conditioner Functions

    • converti7

  • Air Conditioner Physical Attributes

    • Connecting Pipe Type

    • Copper Connecting Pipe

    • Connecting Pipe Length

    • 3 Meters

    • Condenser Coil Type

    • Copper

    • Evaporator Coil Type

    • Copper Evaporator Coil

    • Drainage Hose Pipe

    • Yes

    • Louvers Swing Type

    • Up/Down | Left/Right

    • Other Body Features

    • ECO Tough ODU Casing

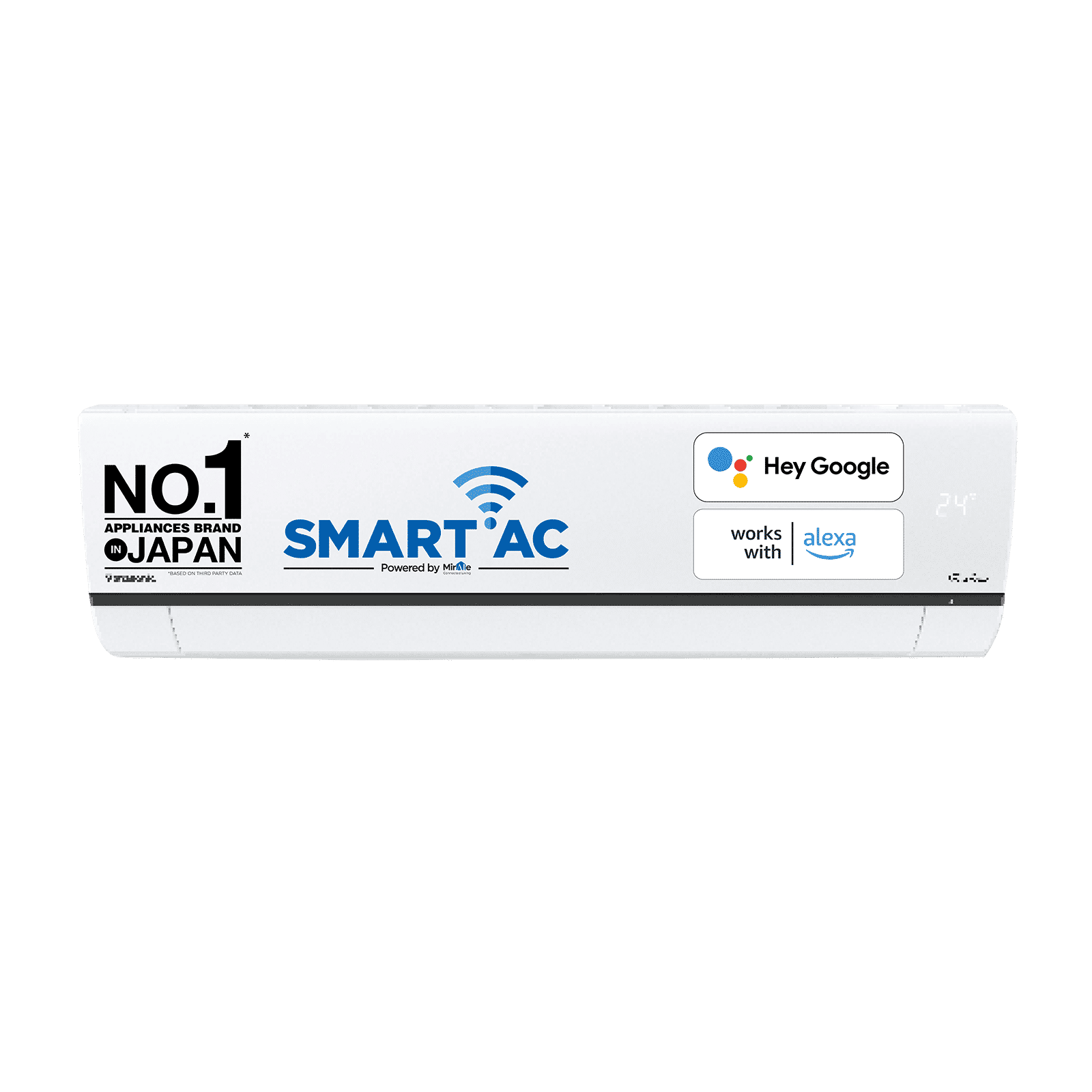

  • Smart Air Conditioner Functions

    • Smartphone Application Controls

    • MirAIe

    • Smart Sensors

    • Yes

    • Voice Guidance

    • Yes

    • Additional Smart Functions

    • Amazon Alexa and Google Assistant Support | Google Home Compatibility

  • Air Conditioner Screen Specifications

    • Display

    • Hidden

  • Network Connectivity

    • Wi-Fi Supported

    • Yes

  • Remote Control Details

    • Remote Control Type

    • IR

    • Display

    • LCD

    • Remote Battery Type

    • AAA

    • Remote Additional Features

    • Glow Buttons

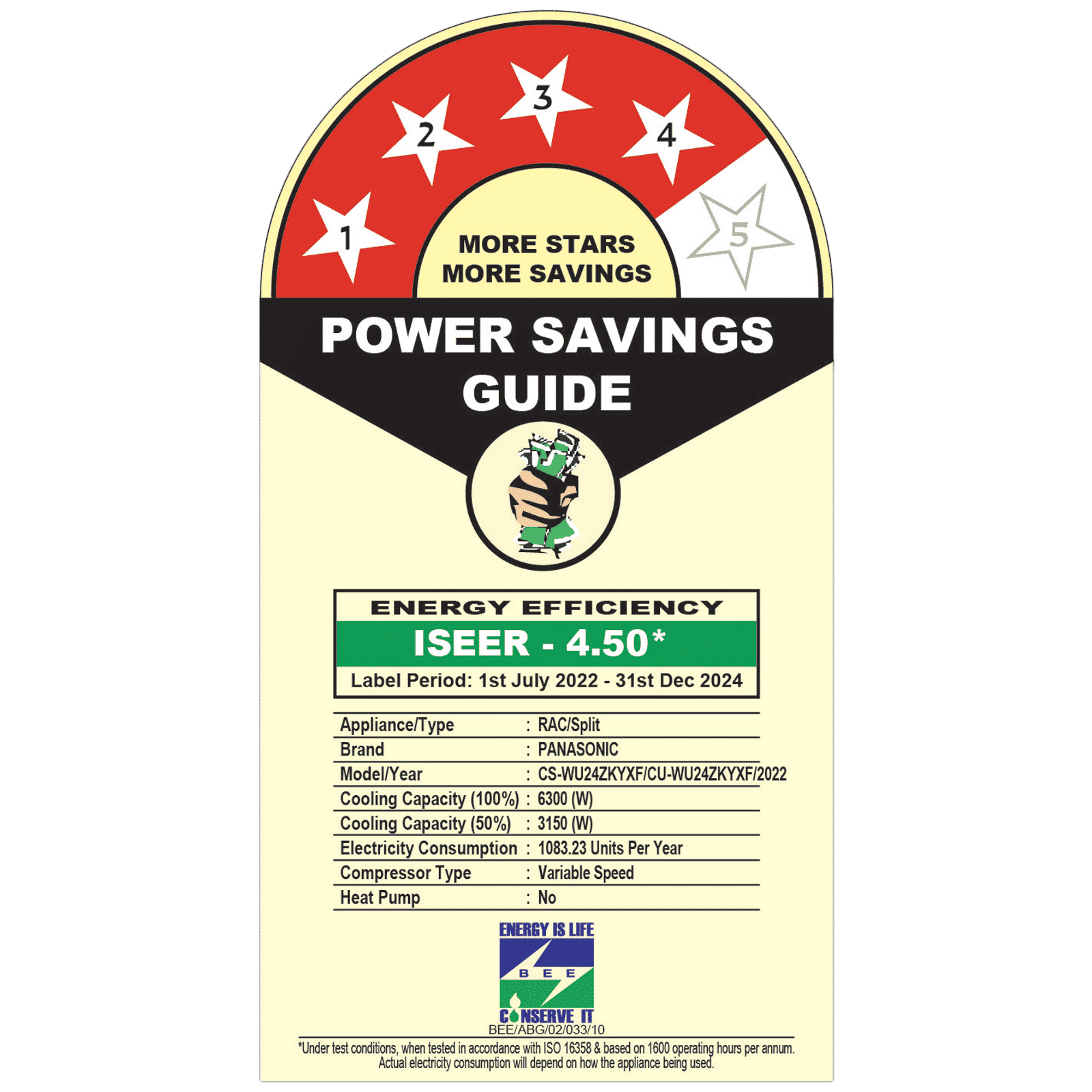

  • Energy Standards

    • Energy Efficiency (Star Rating)

    • 4 Star

      • Economy Mode

      • Yes

    • Air Conditioner Plug Details

      • Power Consumption

      • 1775 Watts

      • Voltage Rating

      • 230 V

      • Frequency

      • 50 Hz

      • Phase

      • Single Phase

      • Cord Length

      • 3.6 Meters

      • Maximum Operating Temperature

      • 52 Degree Celsius

    • Materials & Durability

      • Body Material

      • Plastic

    • Aesthetics

      • Brand Color

      • White

      • Color

      • WHITE

    • In The Box

      • Documents

      • User-Manual | Warranty Card

      • Main product

      • 1 x Indoor Unit & Outdoor Unit

      • Accessories

      • RemoteControl | RemoteControlBattery | InstallationKit

        • Generic Name

        • Air Conditioner

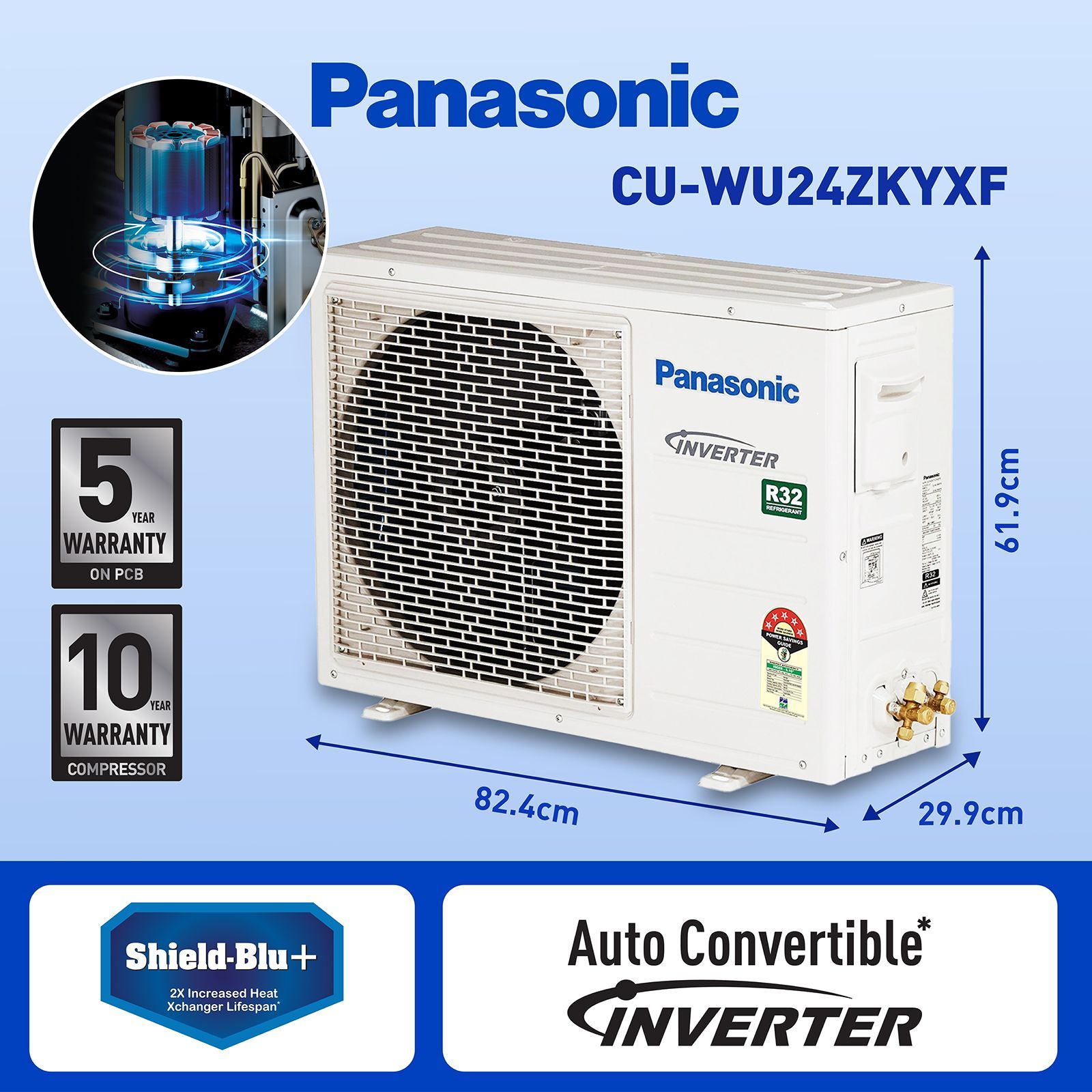

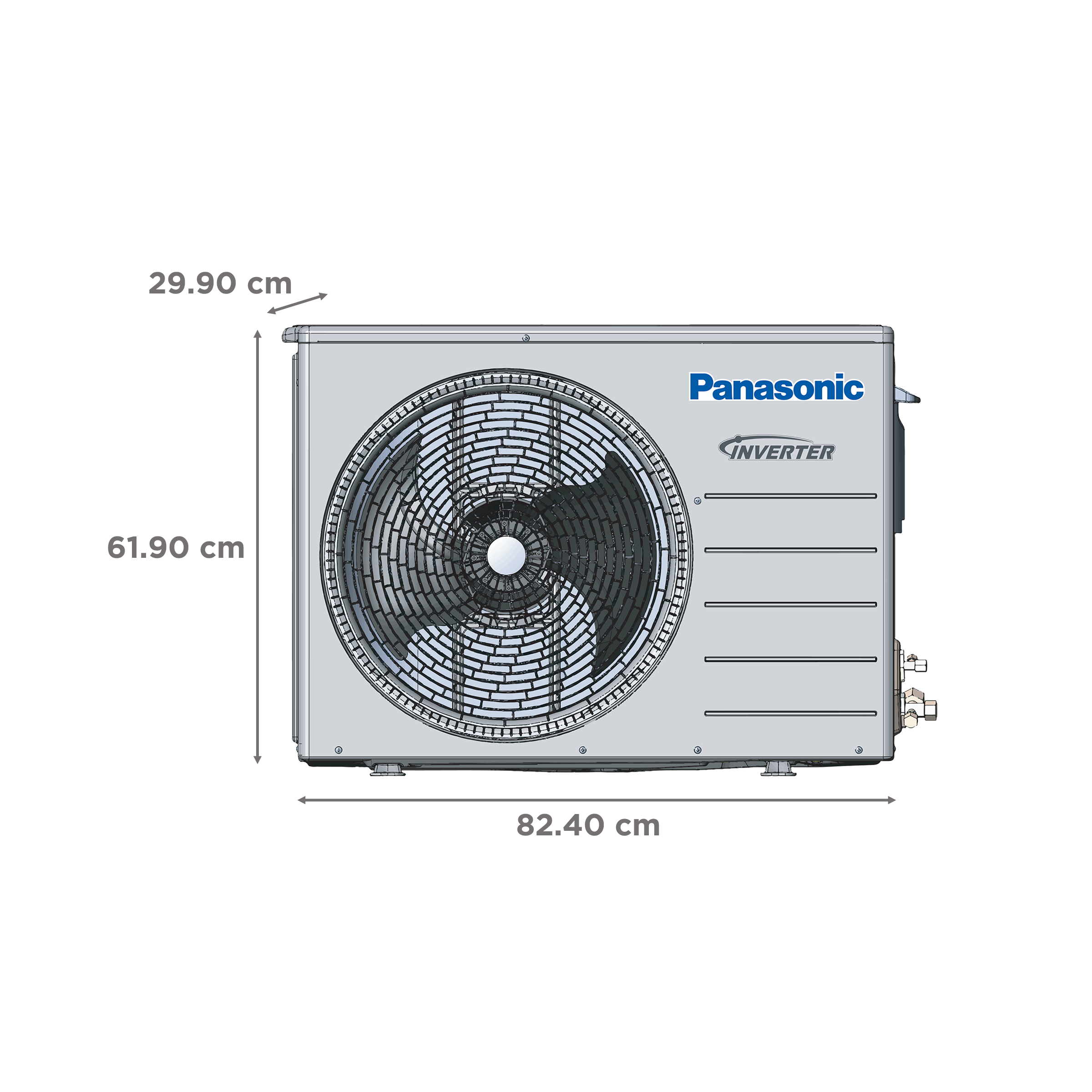

      • Product Dimensions Outdoor Unit

        • Dimensions in CM (W x D x H)

        • 82.4 x 29.9 x 61.9

        • Dimensions in Inches (W x D x H)

        • 32.44 x 11.77 x 24.37

        • Outdoor Unit Weight

        • 30 Kg

      • Packaged Dimensions

        • Package Dimensions in Inches (W x D x H)

        • 45.66 x 11.29 x 14.52

        • Package Weight

        • 14 Kg

        • Package Dimensions in cm (W x D x H)

        • 116.0 x 28.7 x 36.9

      • Product Packaged Dimensions Outdoor Unit

        • Outdoor Unit Package Dimensions in CM (W x D x H)

        • 97.0 x 41.6 x 70.0

        • Dimensions in Inches (W x D x H)

        • 38.18 x 16.37 x 27.55

        • Outdoor Unit Package Weight

        • 35 Kg

      • After Sales & Services

        • Warranty on Main Product

        • 12 Months

        • Motor Warranty

        • 1 Year Warranty on Condenser| 10 Years Warranty on Compressor

        • Warranty Type

        • Onsite

        • Installation & Demo

        • Croma will coordinate for Installation and Demo on Chargeable Basis

          • Certification

            • ROHS Compliance

            • Yes

          • Company Contact Information

            • Customer Support Number

            • 18001081333

            • Customer Support Email

            • helpline@in.panasonic.com

              • Country of Manufacture

              • India

              • Country of Brand Origin

              • Japan

            • Croma Service Promise

              • Customer Support Email

              • customersupport@croma.com

              • Registered Name and Address

              • Infiniti Retail Ltd. - Unit No. 701 & 702, 7th Floor, Kaledonia, Sahar Road, Andheri (East); Mumbai - 400069. India

              • Customer Support Number

              • 1800 572 7662

              • Customer Care Contact Person

              • Grievance Officer

            View More

            Overview

            Optimal AI Auto Cooling

            If you need a cooling solution for a room of 260Sq.Ft., the 653CFM Panasonic CS/CU-WU24ZKYXF 2-ton Split Air Conditioner is an ideal choice. Integrated with AI Auto Cooling, this air conditioner can assess room conditions and usage patterns, automatically selecting the ideal mode based on your temperature preference.


            Shield Blu Plus Technology

            Incorporating Shield Blu Plus technology, forming an anti-corrosive layer on both indoor and outdoor units. This protective layer serves to prevent scratches and leaks, enhancing the durability of the air conditioner.


            Active Air Purification

            You can experience high-quality air purification with this AC's proactive approach to enhancing indoor air quality. Leveraging advanced mechanisms like UV-C light, ionisation, and other active methods, it effectively neutralises and eliminates airborne contaminants, ensuring a cleaner and healthier indoor environment.

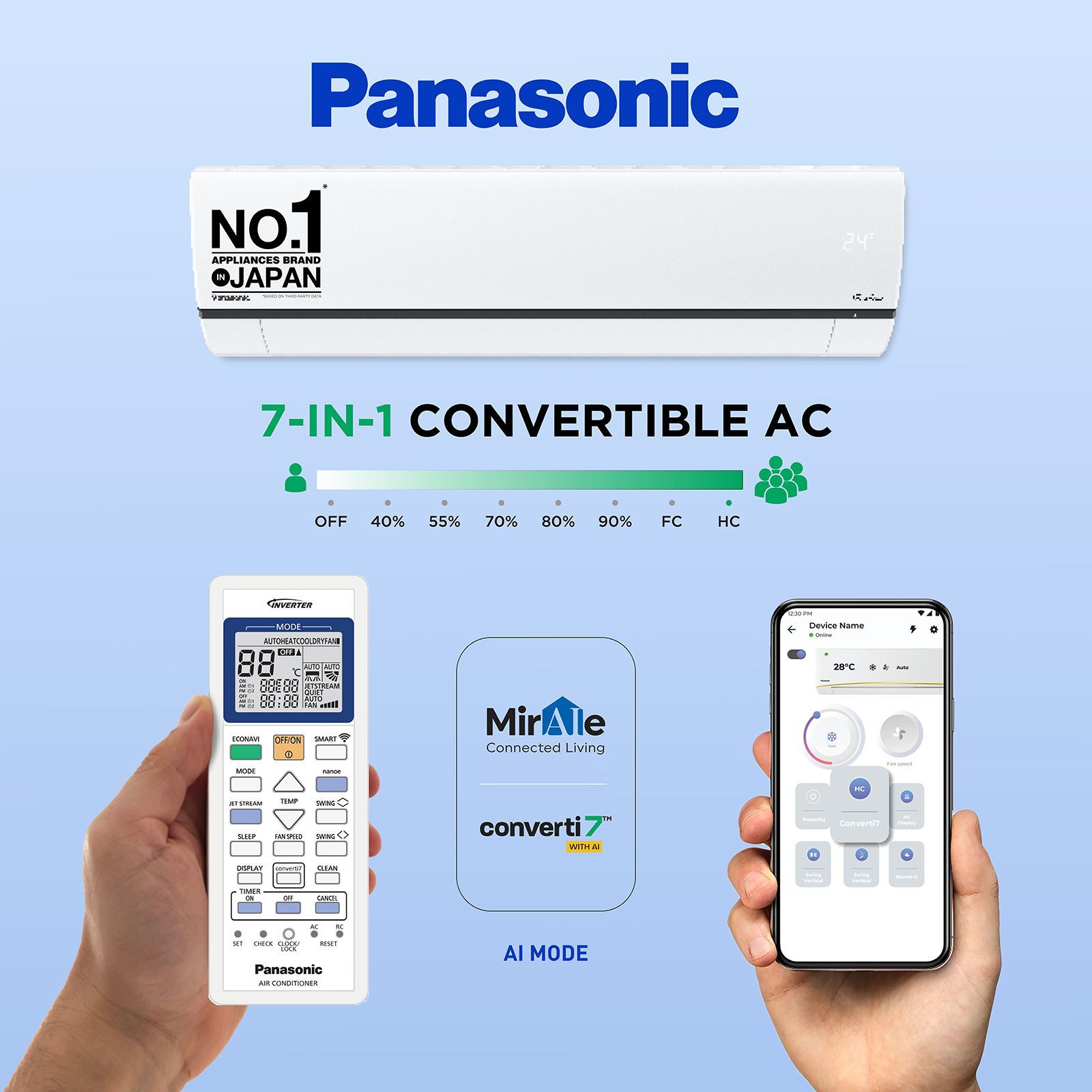

            7-in-1 Convertible Mode

            Enjoy a cooling experience designed for your needs with this AC's 7-in-1 convertible mode, which allows you to adjust the cooling capacity to save energy and stay comfortable.


            Sleep Mode

            The sleep mode in this air conditioner optimises cooling settings to provide a comfortable and energy-efficient environment while you rest.


            Twin Rotary Compressor

            The 2-ton AC's twin rotary compressor ensures not only efficient cooling but also longevity.


            2-Star AC

            Engineered for cost-effective cooling, this air conditioner boasts a 2-star rating and consumes as little as 1775W, ensuring that your energy bills remain manageable.


            Copper Condenser Coil

            Boasting a copper condenser coil, this Panasonic air conditioner maximises heat exchange efficiency, ensuring effective and rapid cooling for your space.


            AG Clean Plus Filter

            Courtesy of its high-performance AG clean plus filter, this AC can filter out dust, allergens, and airborne particles, providing you with clean air.


            Auto-Restart

            Featuring auto-restart, this AC ensures uninterrupted cooling performance, even after power outages.


            Self-Clean

            The self-clean mode in this air conditioner automatically cleans and dehumidifies the unit, ensuring fresh and comfortable air quality in your space.


            R32 Refrigerant

            Featuring R32 refrigerant, this air conditioner is engineered for eco-conscious and efficient cooling, reducing its impact on the environment.


            Stabiliser-Free Operation

            This air conditioner offers stabiliser-free operation, making it convenient to manage voltage fluctuations without the need for an external stabiliser.


            Inverter-Compatible AC

            You won’t have to worry about power cuts as this AC stays functional as it is inverter-compatible.
