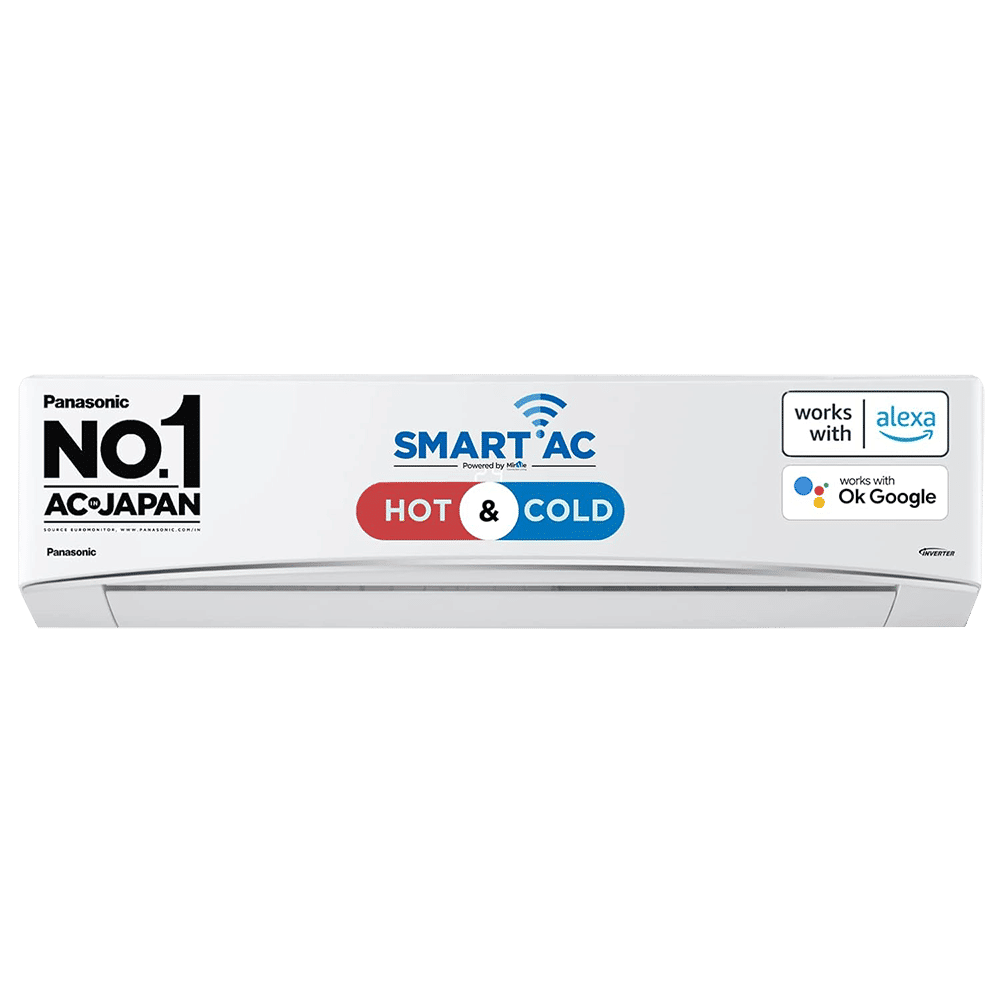

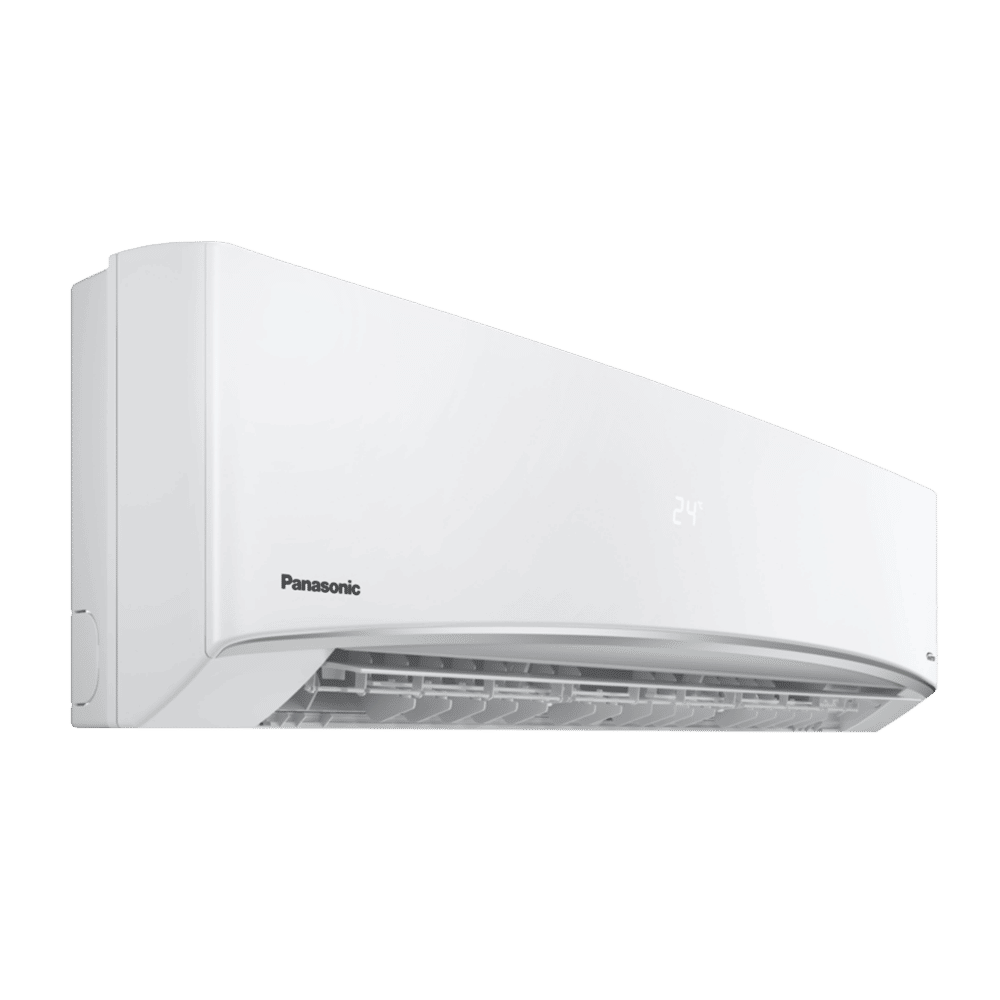

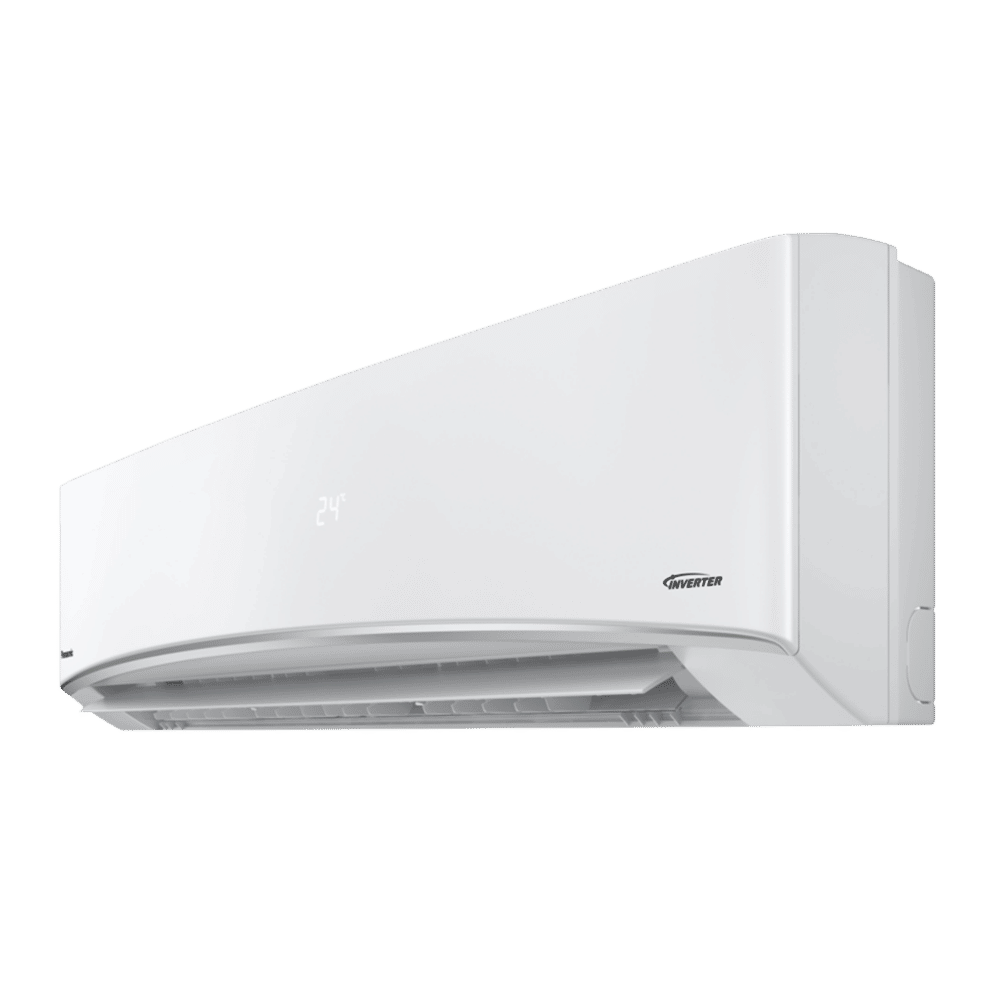

Panasonic KZ 2 Ton 3 Star Hot and Cold Inverter Split Smart AC with Anti-Dust Filter (Copper Condenser, CS/CU-KZ24YKYF)

Air Conditioner Category

• Air Conditioner Type

• Split

• Air Conditioner Capacity

• 2 Ton

• Approximate Coverage Area(Sq.Ft)

• 260 Sq. Ft.

• Approximate Coverage Area(Sq.M)

• 24.15 Sq.m

• Installation Type

• Wall Mount

Manufacturer Details

• Brand

• Panasonic

• Model Series

• KZ

• Model Number

• CS/CU-KZ24YKYF

Air Conditioner Features

• Air Conditioner Modes

• Auto, Cool, Heat, Fan, Dry, Sleep, Timer | ECO Mode

• Convertible Mode

• No

• Cooling Technology

• Yes

• Heating Technology

• Yes

• Air Flow Volume

• 636 CFM

• Humidity Control

• Yes

• Inverter Technology

• Yes

• Stabilizer Free Operation

• Yes

• Cooling Capacity

• 6200 (2480 - 6820) Watts

• Heating Capacity

• 6300 (2520 - 6930) Watts

• Ambient Temperature (Cooling/Heating) In Degree Celsius

• Minus 7 - 52 Degree Celsius

• Running Current (Cooling/Heating)InAmps

• 9.1 Amps

• Cooling Power Input

• 1990 (520 - 2687) Watts

• Heating Power Input

• 2000 (400-1800) Watts

• Additional Air Conditioner Features

• Units Consumed Per 1600 Hours: 1170.01, Rated Cooling Capacity (BTU/H): 21155 (8460 - 23200), Wide Voltage Range: 145 - 285V, Hot and Cold, MirAIe, Powerful Mode, Shield Blu Plus, Max Air Circulation: 635.652 CFM

Air Conditioner Functions

• Compressor Type

• Twin Rotary Compressor

• Refrigerant Type

• R-32

• Temperature Settings

• 24

• Noise Level (Indoor Unit)

• 40 - 47 dB

• Noise Level (Outdoor Unit)

• 56 dB

• Air Conditioner Filters

• Anti-Dust Filter, PM2.5 Filter, Ag Clean Plus Filter

• Air Purification Function

• Yes

• Air Purification Type

• Passive Purification

Air Conditioner Physical Attributes

• Connecting Pipe Type

• Copper

• Connecting Pipe Length

• 3 m

• Condenser Coil Type

• Copper

• Evaporator Coil Type

• Copper

• Drainage Hose Pipe

• Yes

• Louvers Swing Type

• Up/Down Automatic

• Other Body Features

• Eco Tough Odu Casing

Smart Air Conditioner Functions

• Voice Guidance

• Yes

• Additional Smart Functions

• Smart Diagonosis, Alexa, Google Home Compatibility

Product Network Connectivity

• WiFi Supported

• Yes

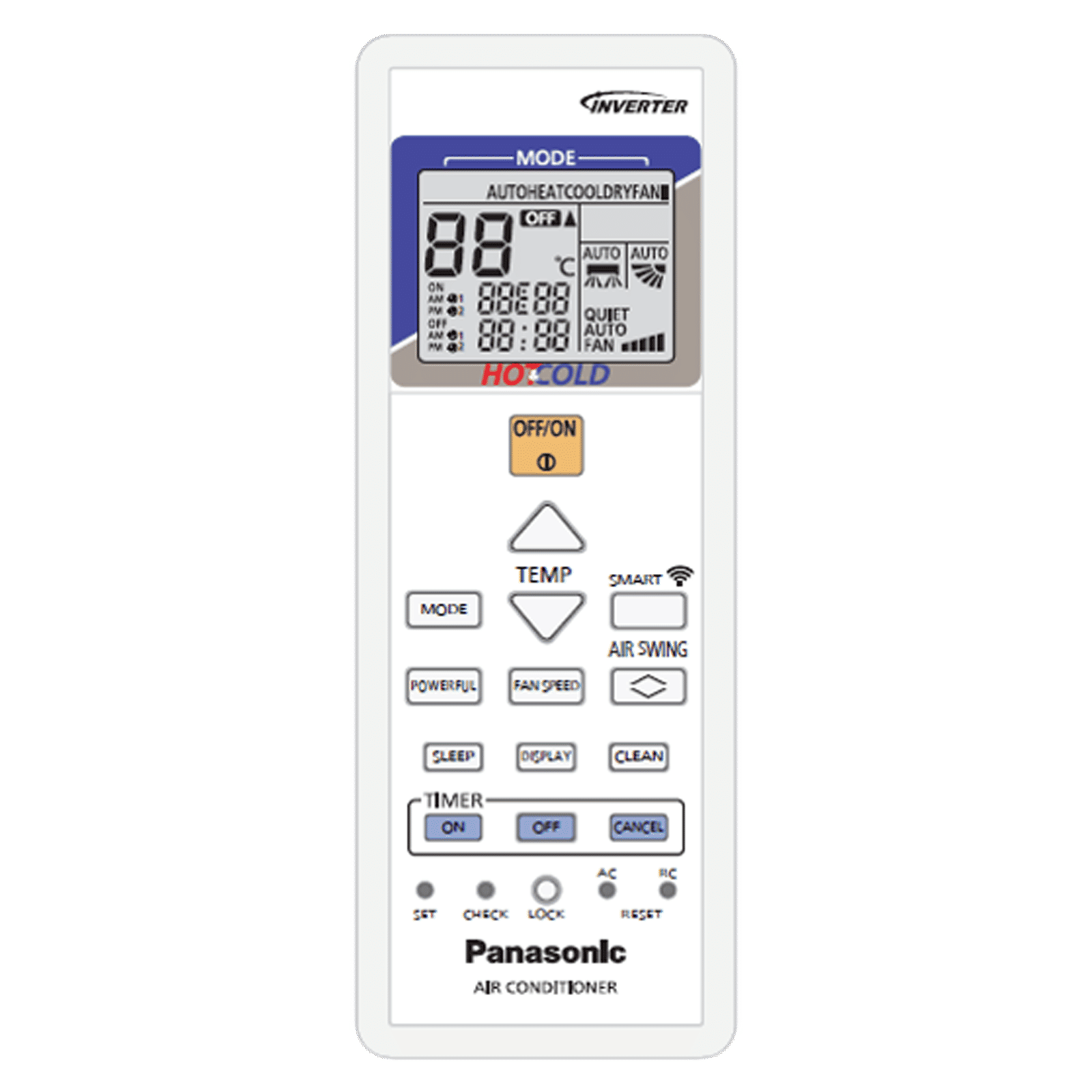

Remote Control Details

• Remote Control Type

• IR

• Remote Battery Type

• AAA

• Screen Type

• LCD

• Additional Remote Features

• Glow Button

Air Conditioner Additional Features

• Indicators

• Hidden Indication

Energy Standards

• Energy Efficiency(Star Rating)

• 3 Star

• Energy Saving Functions

• Yes

Air Conditioner Plug Details

• Power

• 1990 W

• Voltage Rating

• 230 V

• Frequency

• 50 Hz

• Phase

• Single Phase

• Cord Length

• 4 m

• Maximum Operating Temperature

• 52 Degree Celsius

Product Aesthetics

• Color

• White

• Color Family

• White

In The Box

• Generic Name

• Air Conditioner

• Main Product

• 1 U Indoor Unit & Outdoor Unit

• Accessories

• Remote Control | Remote Control Battery | Installation Kit

• Documents

• Warranty Card | User Manual

Product Dimensions (Open)

• Dimensions in cm (WxDxH)

• 107.00 x 23.50 x 29.00

• Dimensions in Inches (WxDxH)

• 42.13 x 9.25 x 11.42

• Weight

• 12 kg

Product Dimensions Outdoor Unit

• Dimensions in cm (WxDxH)

• 82.40 x 29.90 x 61.90

• Dimensions in Inches (WxDxH)

• 32.44 x 11.77 x 24.37

• Weight

• 31 kg

Product Packaged Dimensions

• Dimensions in cm (WxDxH)

• 116.00 x 28.10 x 36.90

• Dimensions in Inches (WxDxH)

• 45.67 x 11.06 x 14.53

• Weight

• 14 kg

Product Packaged Dimensions Outdoor Unit

• Dimensions in cm (WxDxH)

• 97.0 x 41.6 x 70.0

• Dimensions in Inches (WxDxH)

• 38.19 x 16.38 x 27.56

• Weight

• 35 kg
