  • 1 Ton Inverter Split AC, 5 Star Rating
  • Copper Condenser
  • 1 Year Comprehensive Warranty, 10 Years Compressor Warranty
  • For Rooms up to 130 sq ft
  • Power Consumption: 760 Watts
  • Refrigerant: R32
  • Durafin Ultra, Freeze Wash

Specifications

  • Air Conditioner Category

    • Air Conditioner Type

    • Split

    • Air Conditioner Capacity

    • 1 Ton

    • Coverage Area

    • 130 Sq.Ft.

    • Approximate Coverage Area(Sq.M)

    • 12.07 Sq.M.

    • Installation Type

    • Wall Mount

  • Manufacturer Details

    • Model Series

    • WindFree

    • Model Number

    • AR12CY5ANWK

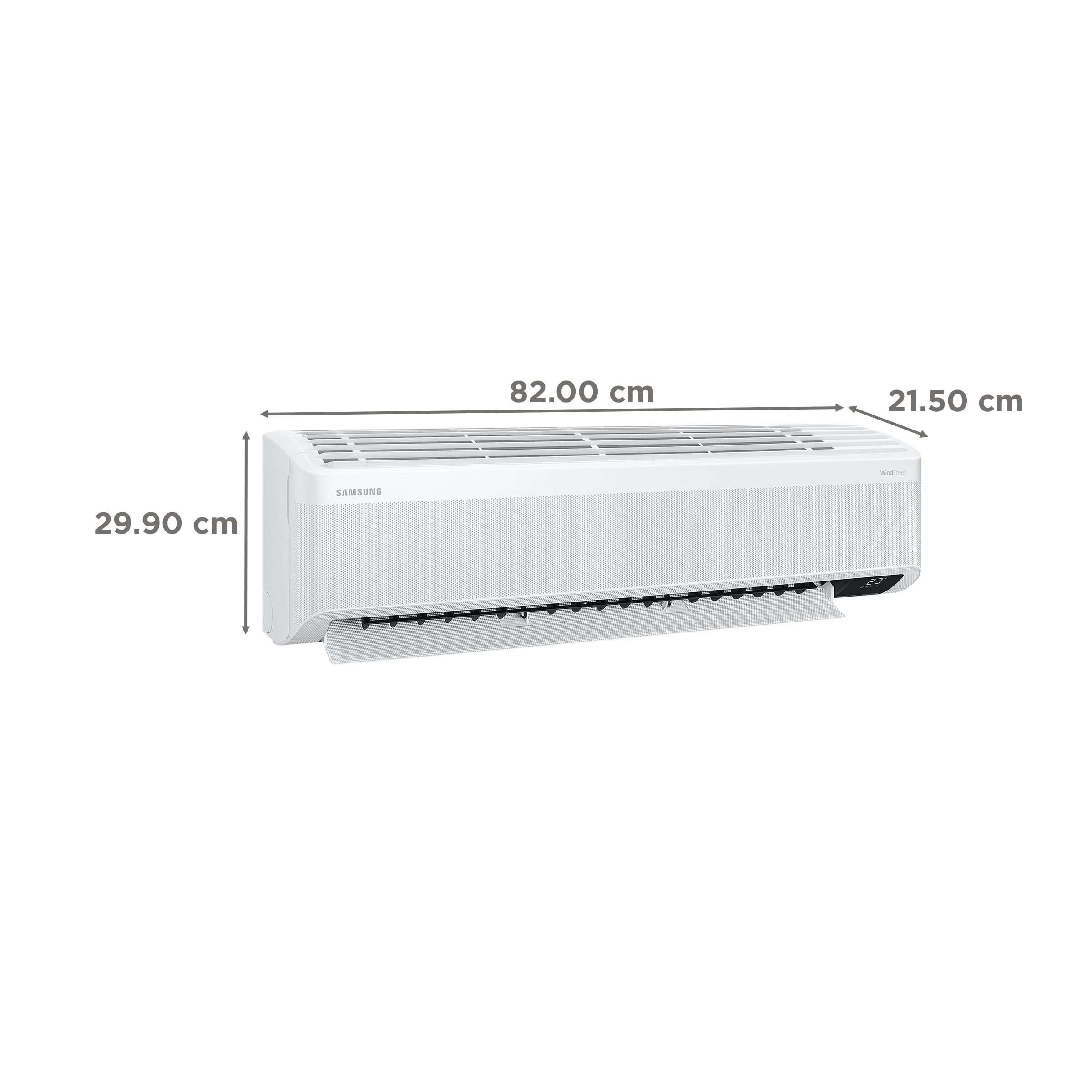

  • Product Dimensions (Open)

    • Dimensions In CM (WxDxH)

    • 81.9 x 21.4 x 29.8

    • Product Weight

    • 9 Kg

    • Dimensions In Inches (WxDxH)

    • 32.28 x 8.46 x 11.77

  • Air Conditioner Features

    • Convertible Mode

    • Yes

    • Cooling Technology

    • WindFree Technology

    • Air Flow Volume

    • 427 CFM

    • Inverter Technology

    • Yes

    • Cooling Capacity

    • 3200 Watts | 10919 BTU Per Hour

    • Air Conditioner Features

    • Units Consumed Per 1600 Hours: 481.43 | Freeze Wash | 5 in 1 Convertible | Durafin Ultra

  • Air Conditioner Functions

    • Compressor Type

    • BLDC Compressor

    • Refrigerant Type

    • R32

    • Noise Level (Indoor Unit)

    • 21 - 42 dBA

    • Noise Level (Outdoor Unit)

    • 49 dBA

    • Air Conditioner Filters

    • Anti Bacterial Copper Filter Plus

  • Air Conditioner Physical Attributes

    • Connecting Pipe Type

    • Copper Connecting Pipe

    • Connecting Pipe Length

    • 3 Meters

    • Condenser Coil Type

    • Copper

    • Louvers Swing Type

    • Up/Down | Left/Right

  • Remote Control Details

    • Display

    • LCD

    • Remote Additional Features

    • Glow Buttons

  • Energy Standards

    • Energy Efficiency (Star Rating)

    • 5 Star

    • Air Conditioner Plug Details

      • Power Consumption

      • 760 Watts

      • Voltage Rating

      • 230 V

      • Frequency

      • 50 Hz

      • Phase

      • Single Phase

      • Maximum Operating Temperature

      • 52 Degree Celsius

    • Aesthetics

      • Brand Color

      • White

      • Color

      • WHITE

    • In The Box

      • Documents

      • Warranty Card | User-Manual

      • Main product

      • 1 x Indoor Unit & Outdoor Unit

      • Accessories

      • InstallationKit | WallMountingKit | RemoteControl

        • Generic Name

        • Air Conditioner

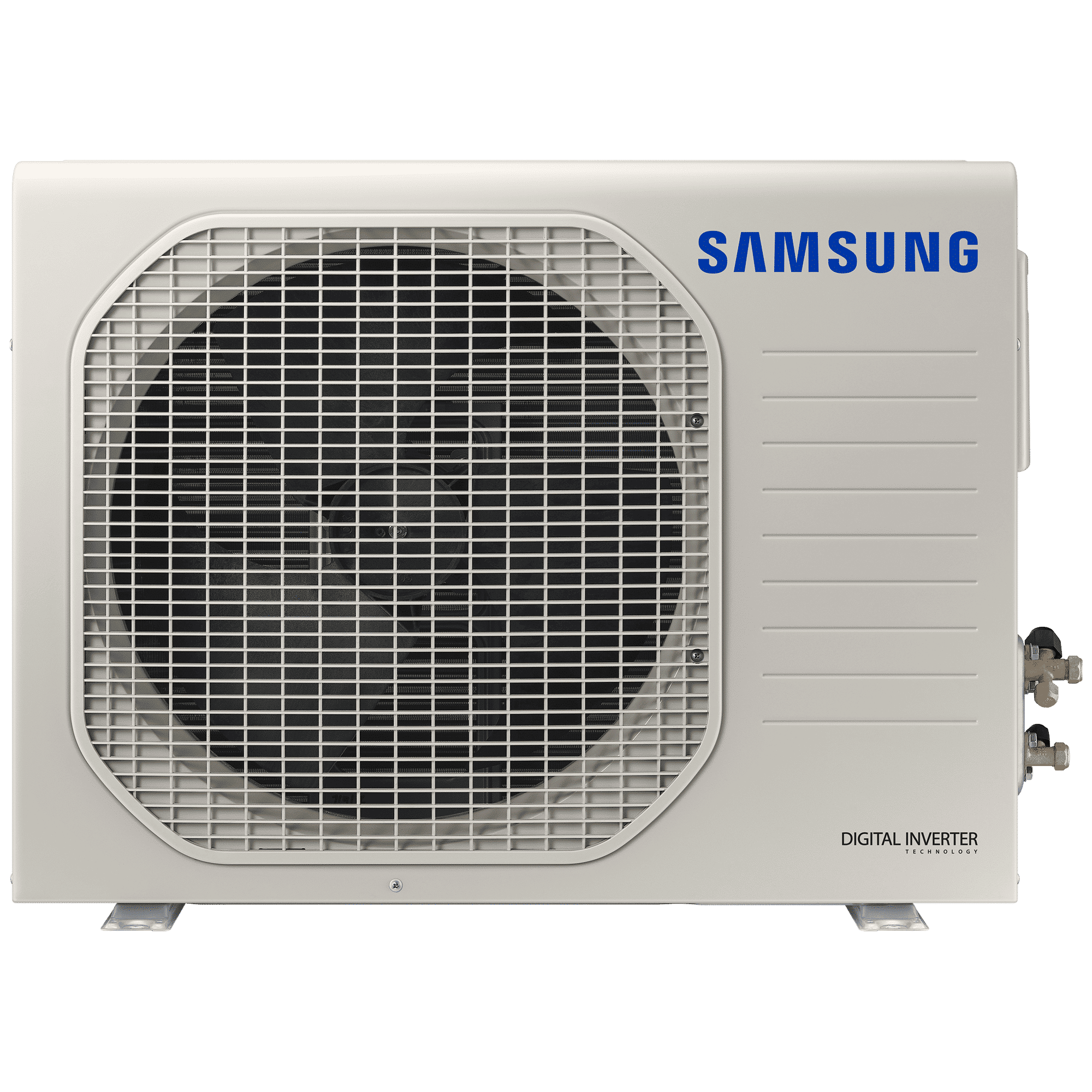

      • Product Dimensions Outdoor Unit

        • Dimensions in CM (W x D x H)

        • 72.00 x 26.50 x 54.80

        • Dimensions in Inches (W x D x H)

        • 28.35 x 10.43 x 21.57

        • Outdoor Unit Weight

        • 25.8 Kg

      • Packaged Dimensions

        • Package Dimensions in Inches (W x D x H)

        • 34.65 x 14.76 x 11.42

        • Package Weight

        • 10.5 Kg

        • Package Dimensions in cm (W x D x H)

        • 88.00 x 37.50 x 29.00

      • Product Packaged Dimensions Outdoor Unit

        • Outdoor Unit Package Dimensions in CM (W x D x H)

        • 85.20 x 35.80 x 62.80

        • Dimensions in Inches (W x D x H)

        • 33.54 x 14.09 x 24.72

        • Outdoor Unit Package Weight

        • 30.3 Kg

      • After Sales & Services

        • Warranty on Main Product

        • 12 Months

        • Motor Warranty

        • 1 Year Warranty on Condenser| 10 Years Warranty on Compressor

        • Warranty Type

        • Onsite

        • Installation & Demo

        • Croma will coordinate for Installation and Demo on Chargeable Basis

          • Company Contact Information

            • Customer Support Number

            • 180057267864 | 1800407267864 | 180057267864

            • Customer Support Email

            • Support.india@samsung.com

              • Country of Manufacture

              • India

              • Country of Brand Origin

              • South Korea

            • Croma Service Promise

              • Customer Support Email

              • customersupport@croma.com

              • Registered Name and Address

              • Infiniti Retail Ltd. - Unit No. 701 & 702, 7th Floor, Kaledonia, Sahar Road, Andheri (East); Mumbai - 400069. India

              • Customer Support Number

              • 1800 572 7662

              • Customer Care Contact Person

              • Grievance Officer

            View More

            Overview

            Rapid WindFree Cooling Solution

            Offering an airflow volume of up to 427CFM, the SAMSUNG WindFree 1-ton Split Air Conditioner is an ideal choice for spaces up to 130Sq.Ft. Moreover, it incorporates advanced WindFree cooling to cool down your room rapidly, offering swift relief from the heat. Your hectic schedule may wear you out, but this AC's immediate cooling ensures that you can quickly recharge and rejuvenate.


            Durafin Ultra

            To preserve the heat exchanger from harmful corrosion, Durafin Ultra, in this AC employs both an anti-corrosive layer and a hydrophilic layer, proven for corrosion resistance through rigorous testing, including the salt spray test.


            5-in-1 Convertible Mode

            Offering 5-in-1 convertible mode in this AC, you can adjust the cooling capacity, providing both energy savings and a comfortable indoor environment.


            Sleep Mode

            You can enjoy a restful night's sleep with the sleep mode feature on this air conditioner, which fine-tunes cooling for your comfort and energy savings.


            BLDC Rotary Compressor

            The BLDC rotary compressor in this 1-ton AC provides reliable and efficient cooling performance.


            5-Star AC

            Owing to its 5-star rating and a power consumption of just 760W, this air conditioner is a fairly economical choice for your home.


            Copper Condenser Coil

            Boasting a copper condenser coil, this air conditioner maximises heat exchange efficiency, ensuring effective and rapid cooling for your space.


            Anti-Bacterial Filter

            Equipped with an effective anti-bacterial filter that is designed to capture dust, allergens, and airborne impurities, this AC makes sure that your indoor air remains fresh and free of contaminants.


            Auto-Restart

            Its auto-restart function ensures that this AC starts again automatically in case of power failures, eliminating any inconveniences.


            Self-Clean

            With the self-clean mode, this air conditioner handles cleaning and dehumidifying tasks automatically, enabling effortless maintenance.


            R32 Refrigerant

            With its R32 refrigerant, this air conditioner ensures eco-friendly and effective cooling performance.


            Stabiliser-Free Operation

            You don’t have to worry about getting an external stabiliser to handle voltage fluctuations, thanks to this air conditioner’s stabiliser-free operation.


            Inverter-Compatible

            As this AC is inverter-compatible, you can still enjoy cooling in case of a power cut.
